Description

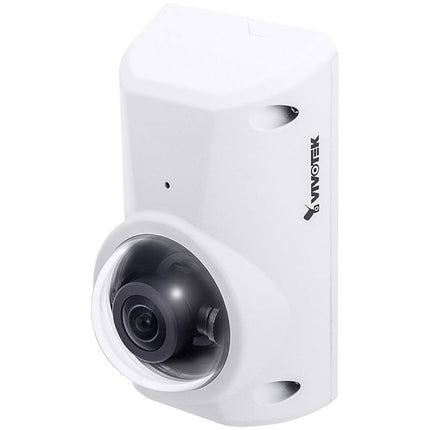

Introducing the Vivotek CC8370-HV, a revolutionary panoramic fisheye network camera designed to provide comprehensive surveillance in a compact and robust package. With its advanced 5-megapixel CMOS sensor and fisheye lens, the CC8370-HV delivers a stunning 180° panoramic view or a 360° surround view when mounted on a ceiling, eliminating blind spots and reducing the need for multiple cameras.
Built for the toughest environments, the CC8370-HV features an IP66-rated weather-resistant and IK10-rated vandal-proof housing, making it ideal for outdoor applications such as storefronts, hallways, transportation, and more. Its unique design, often referred to as a "covert" or "corner" camera, allows for discreet installation while still providing powerful security
Experience crystal-clear video quality even in challenging lighting conditions thanks to its WDR Pro technology, which optimizes image quality in high contrast scenes. With built-in IR illuminators, you'll have exceptional night vision capabilities up to 15 meters, ensuring round-the-clock protection. The CC8370-HV is more than just a camera; it's a complete surveillance solution for your peace of mind.
Key Features:
-
5-Megapixel CMOS Sensor: Delivers high-resolution video for clear identification.
-
180° Panoramic / 360° Surround View: Cover vast areas with a single camera, reducing equipment costs.
-
WDR Pro Technology: Enhances visibility in challenging high-contrast lighting conditions.
-
Built-in IR Illuminators (15M): Provides clear night vision for 24/7 surveillance.
-
IP66 Weather-Resistant: Protected against dust and powerful water jets, perfect for outdoor use.
-
IK10 Vandal-Proof Housing: Robust construction to withstand impacts and tampering.
-
Trend Micro IoT Security: Enhanced cybersecurity protection for your network.
-
Built-in Microphone: For audio recording and enhanced situational awareness.
-
Local Storage Support: MicroSD/SDHC/SDXC card slot for on-board recording.
-
Compact & Discreet Design: Ideal for unobtrusive installation.
Technical Specifications:
-
Model: CC8370-HV
-
Image Sensor: 1/2.8" Progressive CMOS
-
Max. Resolution: 2560x1920 (5MP)
-
Lens Type: Fixed-focal, Fisheye
-
Focal Length: 1.45 mm
-
Iris Type: Fixed Iris
-
Horizontal View Angle: 180°
-
Vertical View Angle: 101°
-
Shutter Time: 1/5 sec. to 1/32,000 sec.
-
IR Illuminators: Built-in IR illuminators, up to 15 meters with Smart IR
-
Minimum Illumination:
-
WDR Technology: WDR Pro
-
Day/Night: Removable IR-cut filter for day & night function
-
Video Compression: H.265, H.264, MJPEG
-
Max. Frame Rate: 30 fps @ 2560x1920
-
Audio Input: Built-in microphone
-
Audio Compression: G.711, G.726
-
Security: Multiple access levels, HTTPS encryption, 802.1X network access, Trend Micro IoT Security
-
Local Storage: MicroSD/SDHC/SDXC card slot
-
Power Input: DC 12V, PoE (IEEE 802.3af Class 2)
-
Power Consumption: Max. 6.4W
-
Dimensions: 160 mm (D) x 48 mm (H)
-
Weight: 758 g
-
Casing: IP66, IK10
-
Oeperating Temperature: -20°C to 50°C (-4°F to 122°F)
