Description
High Performance - High Reliability Design Wide Frequency Response - Very Low Distortion 7 Channel Inputs - 3 Zone Outputs 5 Balanced Microphone Inputs Phantom Power on all MIC Inputs MIC 4/AUX 1 and
MIC 5/AUX 2 Inputs
With Stereo Summing AUX1 and AUX2 Inputs Attenuator 600 ohm
Transformer Balanced
Telephone Paging Input MIX Buss and 600 ohm Line Output

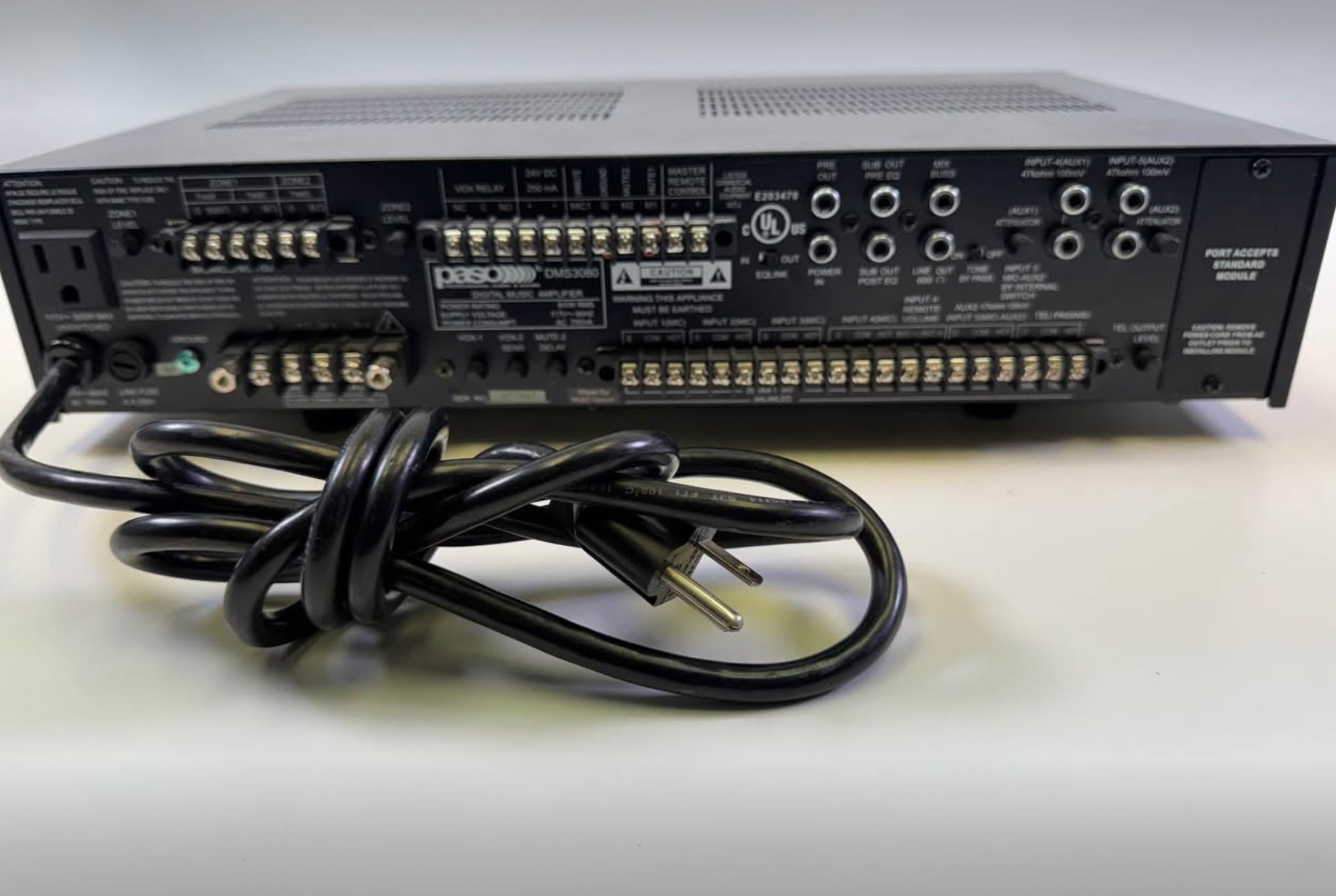

Independent Input Controls Rear Panel Port: Accepts Standard Module Independent Module Level Control AUX1 and Master Remote Volume Controls External EQ Link Tone by-pass and EQ Link switches Pre-EQ Subwoofer Output Post-EQ Subwoofer Output Addressable Dual VOX
Buss
Voice Activated Muting VOX Variable Time Delay Function Addressable
Dual MUTE Buss Direct Muting and Unmuting 600 ohm and 8 ohm 1
Watt
Music on Hold Amplifier MOH Amplifier Source Selector Zone 2 and 3, 1
Watt - 8 ohm Output
with Separate Control NO/NC VOX Operated Relay 24 V DC 250 mA
Regulated Power Supply Output 8 ohm, 25 Volt & 70 Volt Output
