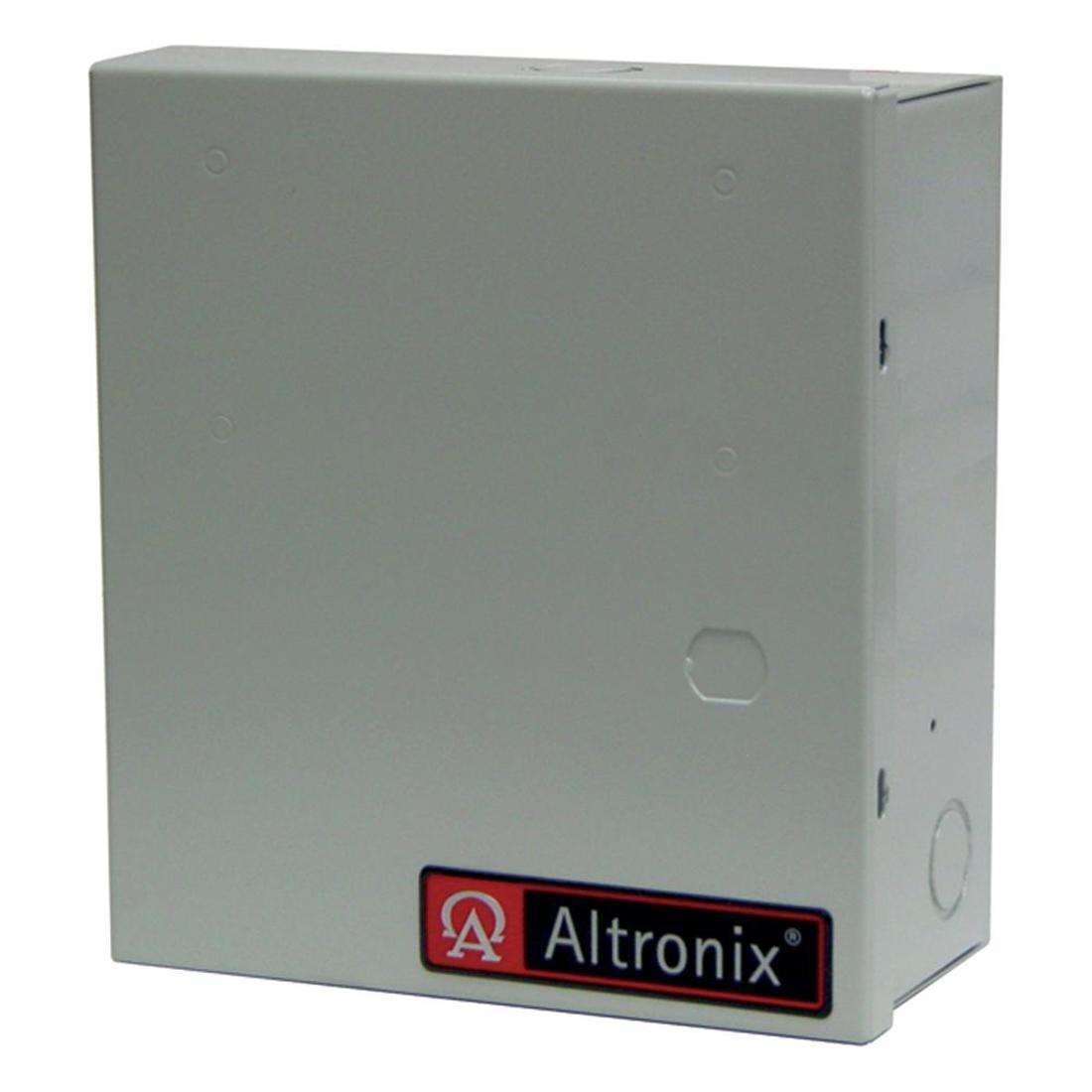

Altronix 2-Output Power Supply/Battery Charger

Description

Model #: AL175ULX

L-H4

  • Input
    • Input 115VAC, 60Hz, 0.6A.
    • Access control trigger input.
  • Output
    • 12VDC or 24VDC selectable outputs.
    • 1.75A supply current.
    • Two (2) Class 2 Rated power limited outputs.
    • Fail-Safe/Fail-Secure lock output (switched).
    • Auxiliary power output (unswitched).
    • PTC protected outputs, rated @ 2.5A.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).

Altronix 2-Output Power Supply/Battery Charger

Product form

Model #: AL175ULX L-H4 Input Input 115VAC, 60Hz, 0.6A. Access control trigger input. Output 12VDC or 24VDC selectable outputs. 1.75A supply... Read more

Barcode: 782239932009

$161.00 Excl. VAT

    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Shipped today? Order within: Oct 27, 2025 17:00:00 -0400

    Description

    Model #: AL175ULX

    L-H4

    • Input
      • Input 115VAC, 60Hz, 0.6A.
      • Access control trigger input.
    • Output
      • 12VDC or 24VDC selectable outputs.
      • 1.75A supply current.
      • Two (2) Class 2 Rated power limited outputs.
      • Fail-Safe/Fail-Secure lock output (switched).
      • Auxiliary power output (unswitched).
      • PTC protected outputs, rated @ 2.5A.
      • Filtered and electronically regulated output.
      • Short circuit and thermal overload protection.
    • Battery Backup
      • Built-in charger for sealed lead acid or gel type batteries.
      • Automatic switch over to stand-by battery when AC fails.
    • Supervision
      • AC fail supervision (form "C" contacts).
      • Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
